Print By Number:: 後 Fogra 39 時代來臨!?

甚麼? 後Fogra 39!?
在台灣印刷產業大部份人還搞不清楚Fogra39 是甚麼東西的同時,Fogra 39 已經要準備退位,印刷標準化已經要邁入下一個階段了!

有幸執行過台灣唯一一家官方Fogra PSO (ISO 12647-2),之後也陸續在幾個單位以Fogra 39的觀點導入運作,皆獲得正面的成效;然而,幾個方面的問題一直沒能有有效的解決,諸如:
●即使印機與數位樣的數據都符合Fogra 規範,視覺上還是有落差;除了規範的寬容度外,估計光源的同色異譜(metamerism)問題及紙張的OBA(Optical Brightness Agent)問題是造成儀器與人眼不能一致的主因。
●台灣包裝廠用最多的灰銅找不到規範。
●特別色(spot color)沒看到規範。
●金屬色(metallic) 沒看到工作方法。
●攝影輸出(photography)沒看到規範。
●軟打樣(soft proof)直接忽略無視。
●彩色雷射色彩漂移頗大(可收到8個∆E76)。
……
先簡單列舉幾項,且看Fogra 39 之後,國際印刷規範組織對上述問題提到了哪些因應之道。
●ISO 17972: color data exchange format 色彩交換格式,其第四部分: Spot color characterization data 提到了特別色工作規範,e.g. . 1. ∆E00<1.5 (D50)。2. 以D50為準,跟其他3種光源下比較的色差值, ∆E76<2。
●ISO 15339:RPC, Reference Printing Condition;涉及量測方式及OBA問題,工作方式為依設備能力(紙張+油墨)選定一RPC為工作目標,並以(SCCA-substrate corrected colorimetric aim)方式作為修正後的工作目標值。
●ISO 3664:2009 重新定義UV的同色異普指數MIUV,由4降到1.5

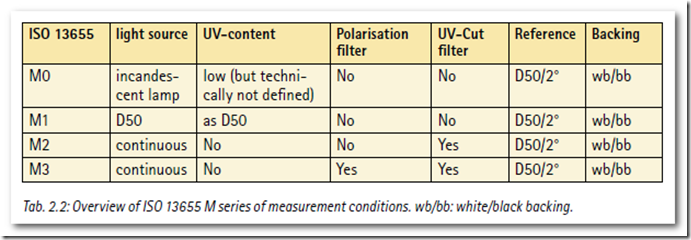

●ISO 13655:2009 定義了新的量測方式(M0~M3)。
●ISO 12647-2:2013+ 提到了較多的紙類,新的TVI曲線及以M1量測數據為準的新的官方icc profile:PSO Coated V3(eci)。
●ICC v5(ICCLabs):  完全超脫(依然涵蓋)平面印刷的icc 工作方式,凡舉光源光譜, 影像擷取,表面性質,觀看角度,網際網路色彩等皆列入考量,是一種全面性解決色彩溝通的觀念運作。

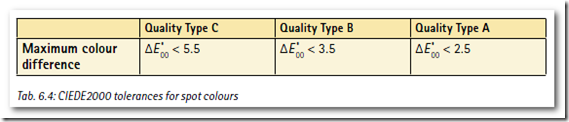

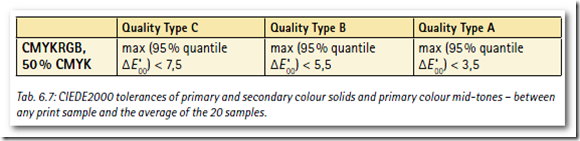

●Fogra PSD (PSO as for Offset and PSD as for Digital):分別對 Digital Proof 及 Digital Print 訂立工作規範,其中Digital Print 以分級(A ,B,C等級)概念實施,最大色差容許到8個dE00(C級)。

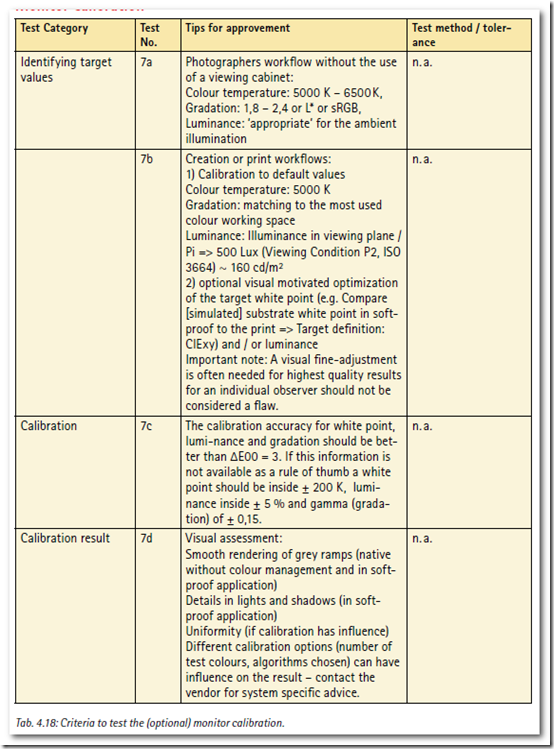

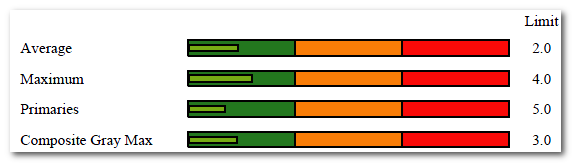

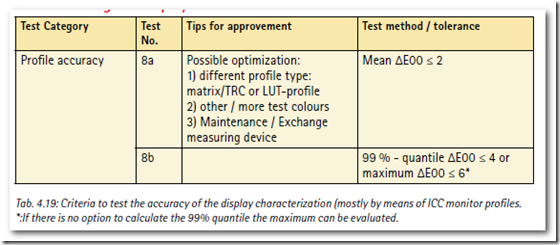

●ISO 文件尚未出現軟打樣數據規範,勉強從 UGRA UDACT 報告中得到(Fogra39)平均<2(dE00),最大<4,主色<5,灰元件最大<3的敘述,姑且稱之為UGRA 觀點的軟打樣規範。

綜合以上,我遇到的 一些問題看來都有被這些國際規範組織關注到;然而什麼時候才能被大量執行,其中牽涉到軟體,硬體工具的發行,執行方法,稽核方法等等,看來也沒那麼快。舉個例子,目前Fogra39 基本能力的執行大約只要USD1000(for i1 Pro)及一天的時間即可施行,就相較於 ISO 15339 的執行,SCCA工具還在Excel層面,這種變動式資料集的工作方式對於傳統Offset的施行還是卡卡的,不容易拉到管理的層面來思考運作。
所以說回來,Fogra39基本能力的養成對現在Offset業者更為重要也更為急迫,Fogra39也許準備要退位(看看還有沒有兩年!),但它就是Offset的基本思想與能力;除非全面轉入Digital, Fogra39的重要性在兩年內應該還是無庸置疑!

以下請參考
ISO 17972-4 CxF X-4 Spot Colors:

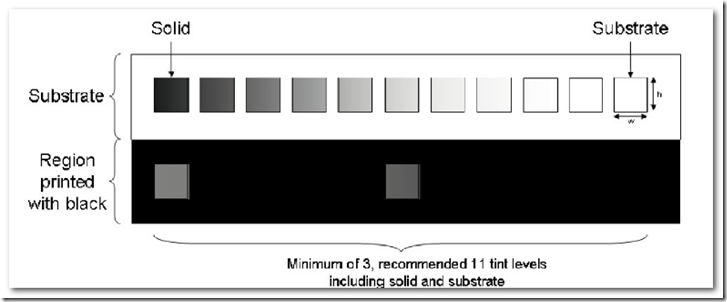

●特別色資訊以光譜方式攜帶,並攜帶至少三組(建議11組)平網資訊(含滿版及紙張),PDF-X 將可攜帶CxF X-4 資訊。

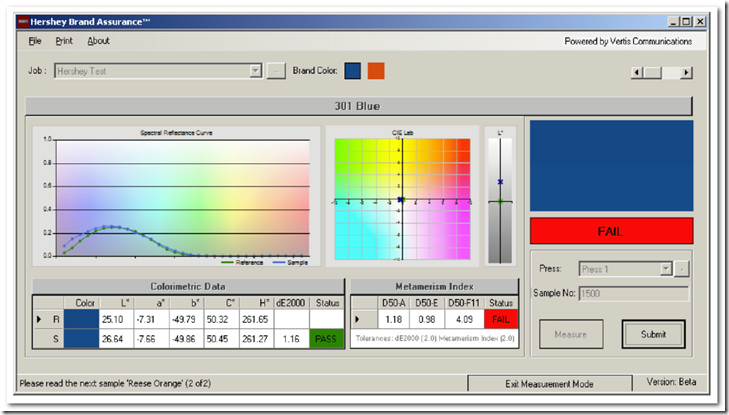

●特別色色差建議規範: ∆E00<1.5 (D50), 以D50為準,跟其他3種光源下的色差值, ∆E76<2

ICC方面的發展: ●V5版本 (ICC Labs)
—Multi-spectral
—Image Capture/Digital Photography
—Package Printing
—Color Management on Internet
—Fine Art
—Color Information Archiving
—a new gamut boundary description (DBD)
—spectral data
—measurement data using the CxF format
—a new encoding of Named colors to support tints

●以光譜方式工作(相對於以Lab 方式工作,光譜方式更有能力處理metamerism 問題)

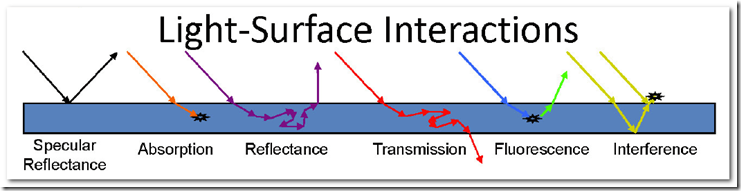

●材料表面性質列入計算(金屬,紡織,陶瓷,平板顯示等皆可因應)

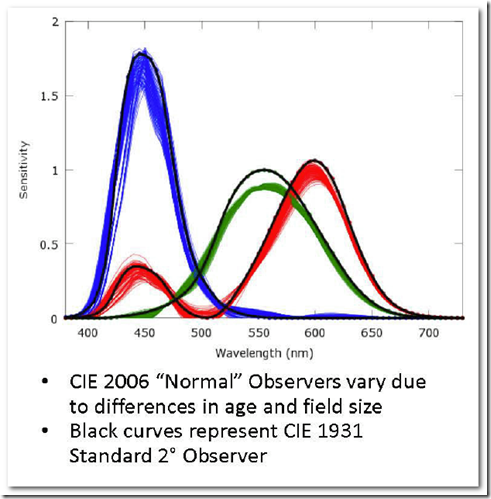

●相對於CIE 1931 人眼觀測(Normal Observers), CIE 2006 人眼觀測加入相關生理因數

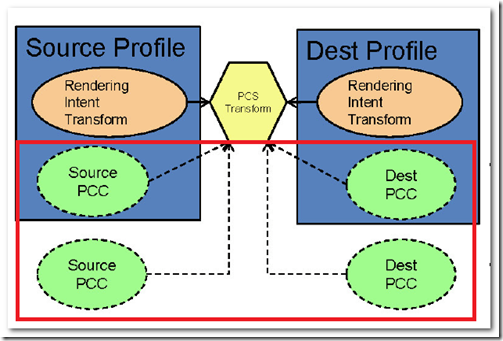

●PCC(Profile Connection Condition)工作方式
—觀看條件(光譜格式)標籤
—自定義到標準訂義標籤(customToStandard)
—標準訂義到自定義標籤(standardToCustom)

●Bidirectional Reflection Distribution Function(BRDF) Tags
—當光源角度或視覺角度變動時材質表面視覺感受也會改變

●Named-color profile (in hierarchical structure)
—階層式標籤架構
—多重平網(multiple tints)
—光譜資訊
—白色疊印(overprint over white)
—黑色疊印(overprint over black)
— BRDF標籤



ISO 15339 參照式規範
●7 個印刷參照規範(RPC, Reference Printing Condition)
RPC

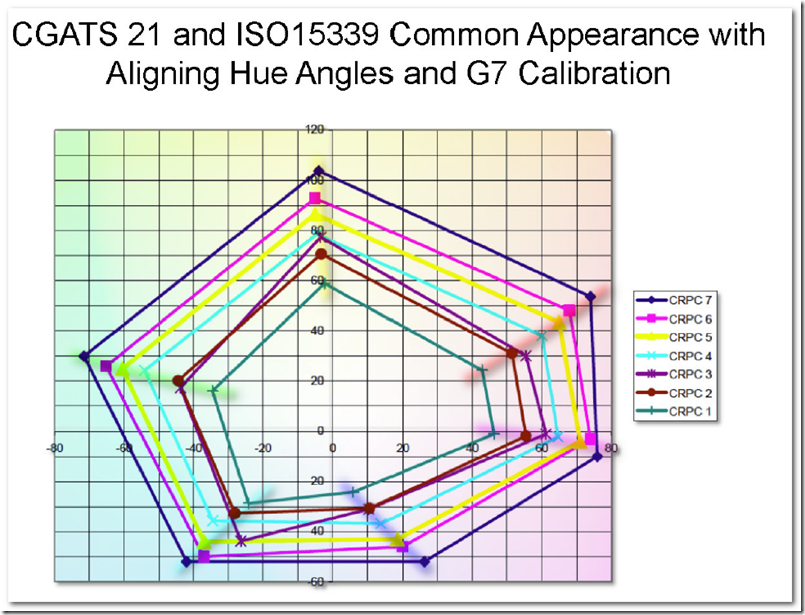

●7個RPC間維持CMYRGB色角度一致
RPC

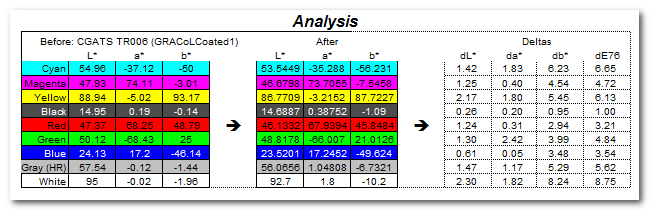

●RPC色彩目標值依紙張修正(SCCA-substrate corrected colorimetric aim)
●印機依SCCA修正CMYK滿版色度。

ISO 12647-2:2013+
●新版本官方profile: PSO Coated V3(eci) (based on M1 measurement)

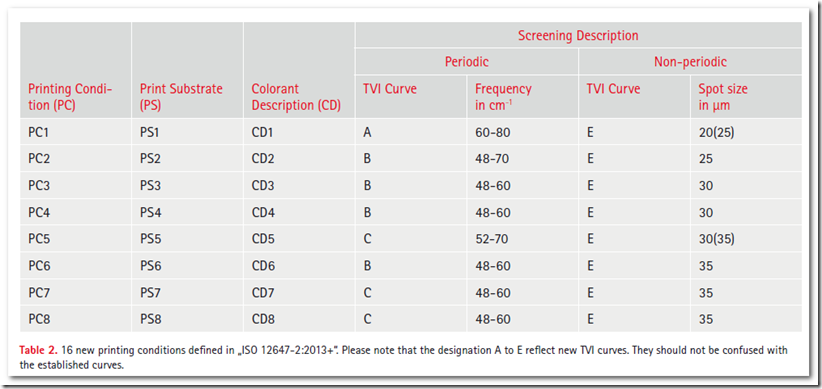

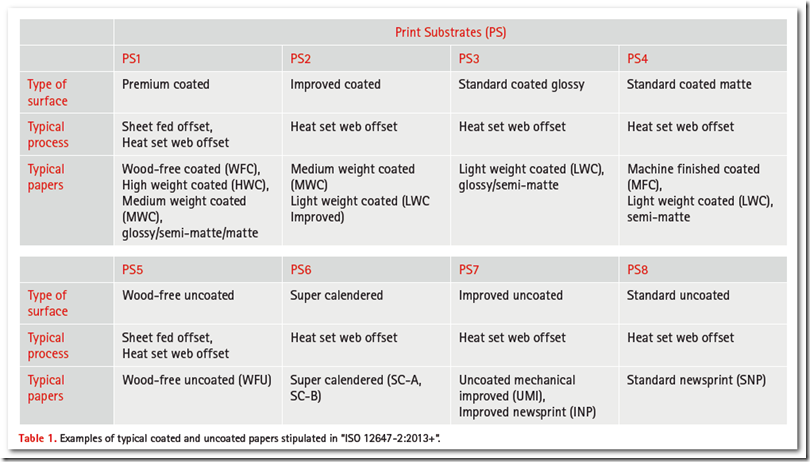

●紙張增為8類

●16種 Print condition(8類紙x2類網點:AM,FM)

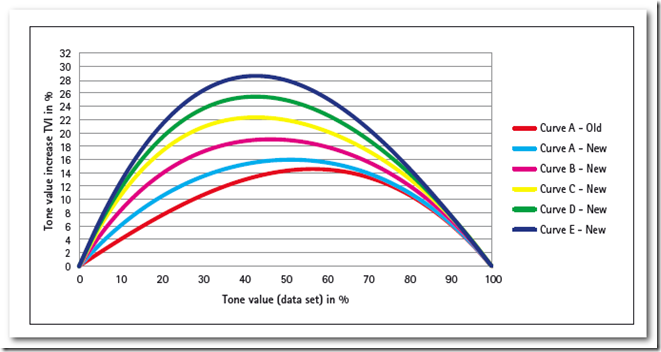

●新的TVI曲線,
—-升高亮部TVI值
— CMYK 簡化為同一條曲線

●量測
—M1 模式(相對於M0的鎢絲燈光源,M1的D50光源含有更多的UV成分)
—色差公式採CIEDE2000
—68% of print run 必須在規範內
—會有一個較明確的灰色公式(會參照紙張,類似G7)

ISO 3664:2009(viewing conditions for images on reflective media)反射稿件觀看條件, ISO 13655:2009 (Spectral measurement and colorimetric computation for graphic arts images)影像量測方法

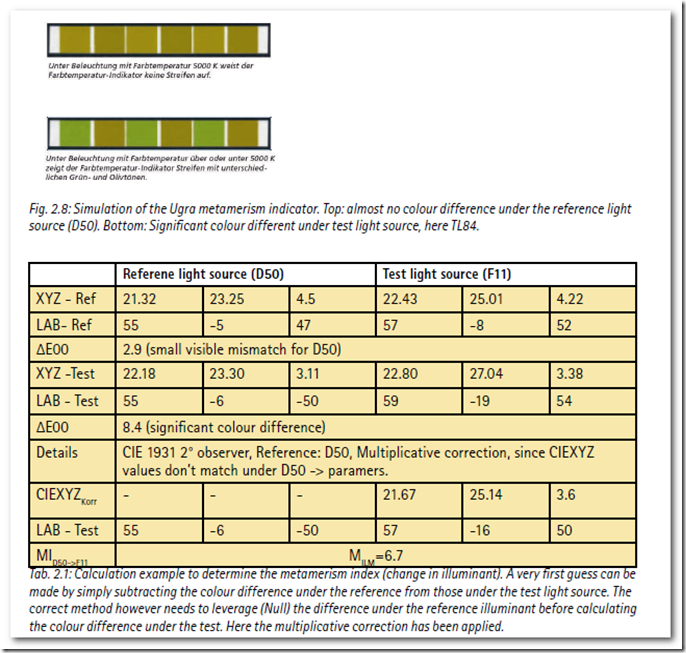

●3664:2000: UV metamerism index (MIUV) to be smaller or equal than 4
●3664:2009:MIUV<1,5 and recommends MIUV<1,0.(MIUV由4降到1.5)
●In order to address the closer match of the UV-content a new measurement mode termed “M1” has been defined in ISO 13655:2009. This allows for close match of the light source to be used for measurement and the light source to be used for visual appraisal in order to “measure as you see”.
(ISO 13655:2009,相對於M0的鎢絲燈光源,M1的D50光源含有更正常分布的UV成分,使得數據更接近人眼感受)
● ISO 3664:2000 :light sources omitting an UV-content from 0%, i.e. UV-Cut, to about 230 % are within the specification (with D50 having 100 % UV-content).
●Creating new characterization data for OBA-rich substrates  seems to be the best alternative. It requires a brief check of the paper with respect to its shade (coloration) and OBA-content. With that information a dedicated set of characterization data (using M1 measurement mode) can be created. Fogra already works on that approach and evaluates candidates within the ongoing research project.
●ISO 3664:2009 conforming viewing conditions represent both an improvement in colour communication and appraisal and a challenge by means of the potential problems to overcome.

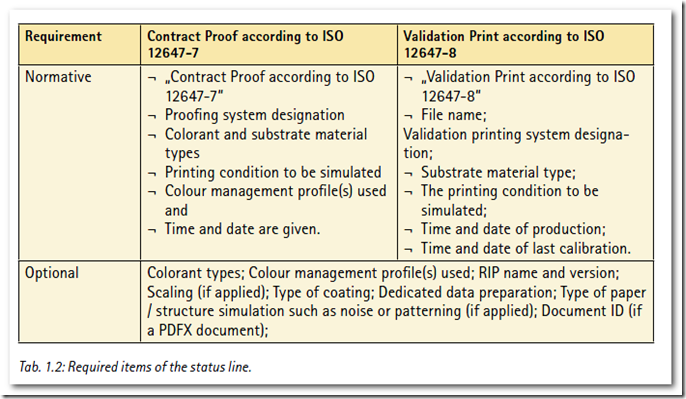

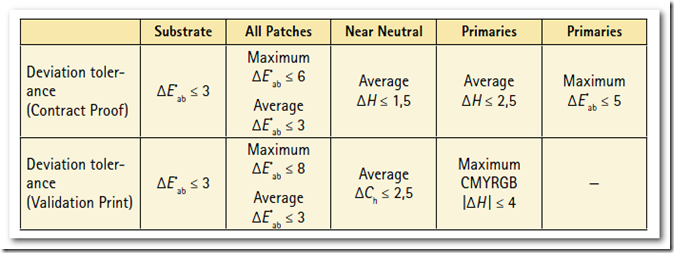

PSD :: (ISO 15311,  ISO 12647-7 Contract Proof, 12647-8 Validation print)
●Part 1: Parameters and Reporting Schema -> current status: PDTS (preliminary draft technical specification)
●Part 2: Digital Commercial Printing -> current status: PDTS
●Part 3: Large Format Signage Printing -> current status: PDTS

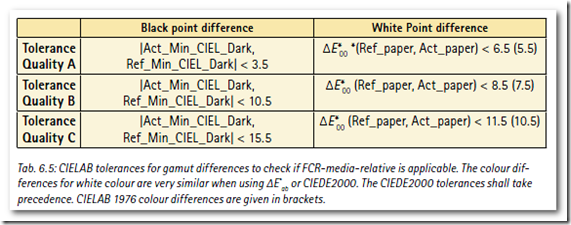

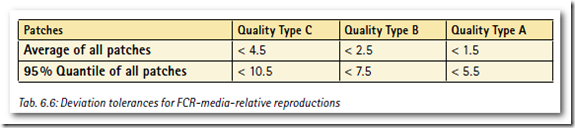

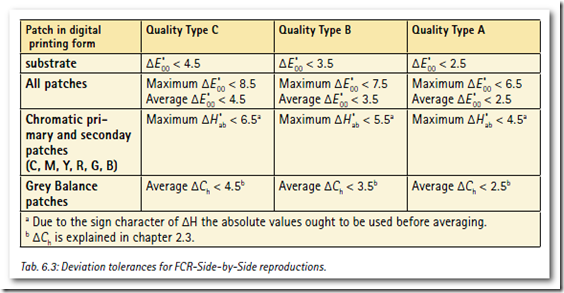

PSD introduces the media relative colour reproduction (and viewing), which provides, together with the established absolute reproduction (viewed Side-by-Side). In addition the proposal of a three level tolerance schema (quality types termed A, B and C) helps to identify the required level of colour match and to cover a wide range of printing application. Here the level “A” can be identified as “stringent” for colour critical applications; Level B represents “normal” tolerances for industrial typical printing and level C is identified with “relaxed” tolerances.
