Fogra media wedge CMYK v3 工具發展 take-2

Fogra media wedge CMYK v3 的 72 格資料已於2008八月發布:
http://www.fogra.org/products-en/digital1.html
and looking for
“Aim values for the 72 Media Wedge tone value patches”

72 格的CMYK 組合 及其 Lab 值已明確公佈,接下來就是找一下怎麼帶入 Profile Maker measure tool 的工作流程; 查了一下 Prifole Maker 的 support 網頁
http://www.xrite.com/product_overview.aspx?ID=793&Action=Support
裡面的”FOGRA Reference FIles (39 & 40) for MeasureTool 5″ 還是V2的格式, 看來V3的工具得自己製作。

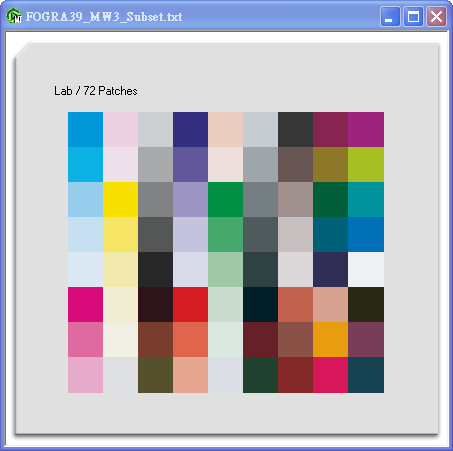

將下載下來的檔案解開,相對於 ISO 12647-2 規範的檔案為”Fogra39_MN3_Subset.txt”. 試著將他帶入 Mesure Tool, 發現其排列為”9×8=72″的排列方式,並非”3×24=72″ 的排列方式,


接下來就改寫”Fogra39_MN3_Subset.txt”

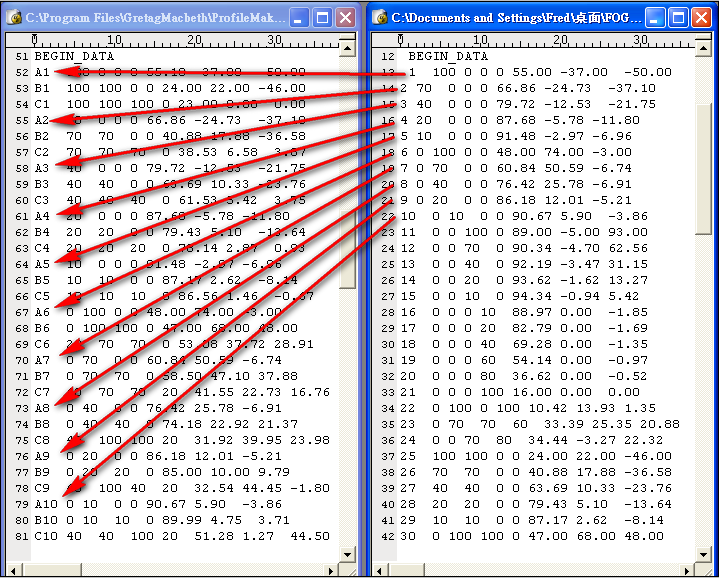

沿用 Measure tool “2x_MW2_FOGRA39L_SB.txt” 的表頭,將”Fogra39_MN3_Subset.txt”重新排列, 從BEGIN_DATA 開始搬動資料

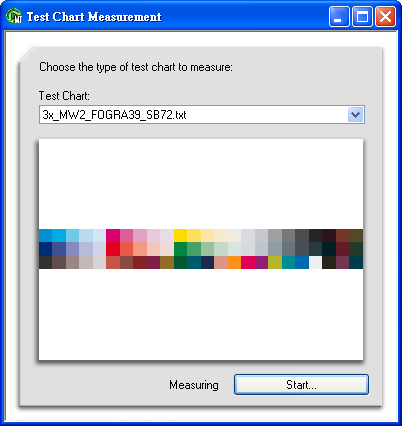

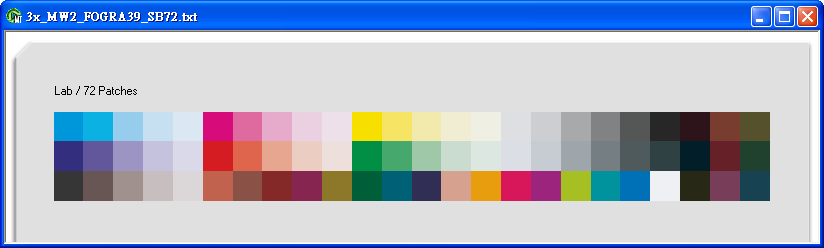

搬動後帶入 Measure Tool 呈 3×24=72 排列方式,Chart 工具也帶得到,算改寫成功;但 PDF report 不能自動形成,看來這個部份有些困難,先試著用Excel來銜接報告部分。

1 person likes this post.
pixelstats trackingpixel

Tags: , , , , , ,

2 Comments

rssComments RSS   transmitTrackBack Identifier URI

Hi :)
If I understand your post correctly, you explain how to create a FOGRA MW3 target for the ProfileMaker.
Will you please explain the steps required in English because I do not understand exactly the process of combining the content of the two files.

Thanks in advance


Comment by Tony on 四月 7, 2009 4:51 下午



Comment by Administrator on 四月 8, 2009 1:50 上午
