Display to the Number::Fogra 39 Softproof capability
Target: Fogra media wedge CMYK V2
Target Number(Lab):
Display: Asus PA249Q
Calibration tool: ArgyllCMS with DipcalGUI
Profiler tool: ArgyllCMS with DispcalGUI
Verification method
1. Convert the Fogra 39 target lab(Fogra39.txt) to Display RGB
icclu -fb -ia -pl -s 255 display.icc <Fogra39.txt> F39rgb.txt
2. display F39rgb to Firefox browser:
dispread -v -dweb F39rgb

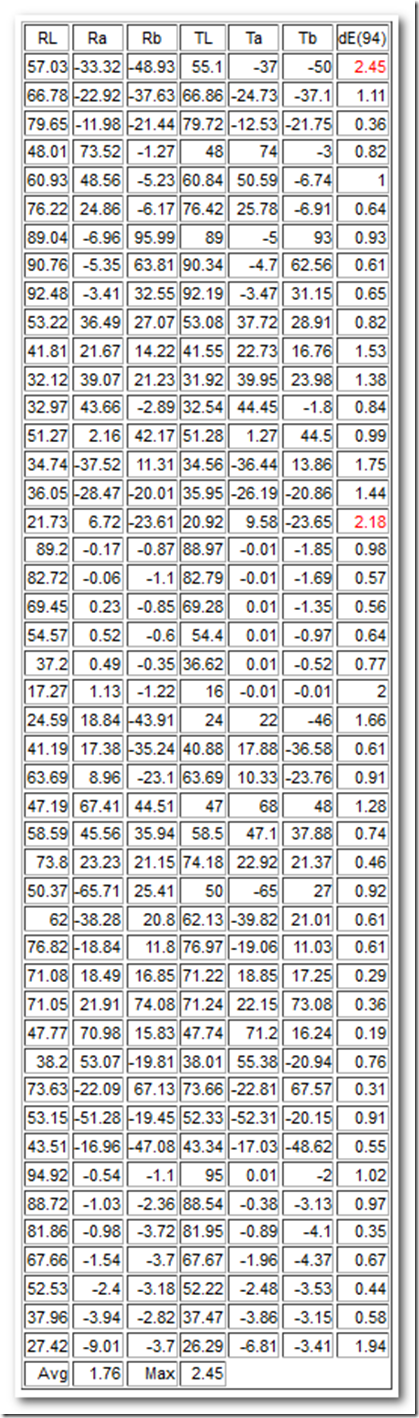

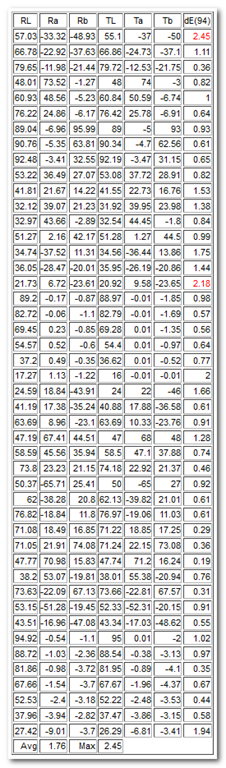

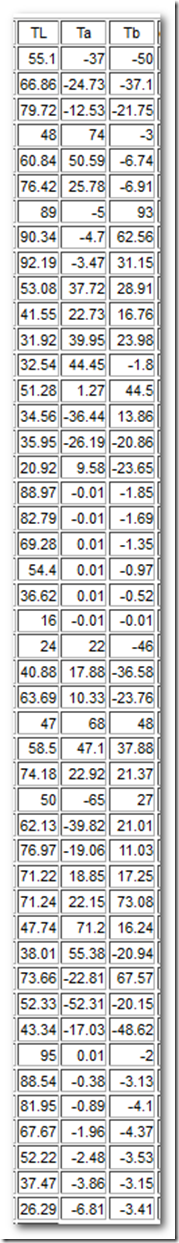

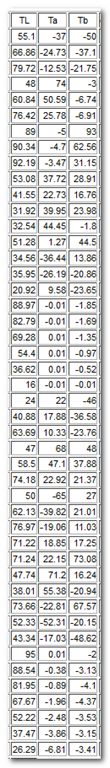

3. iOne reading from Firefox, compare to target lab, and get the report:
pretty good job for a NTD 16900 display.
compare to a Samsung F2380 here:http://www.fredkuo.idv.tw/wordpress/?p=1523
Tags: Asus, Fogra PSO, ISO 12647-2, Samsung, soft proof
